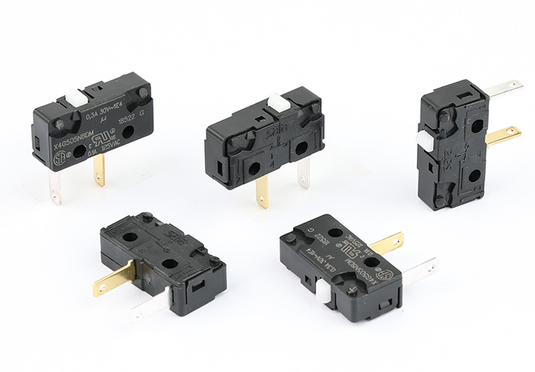

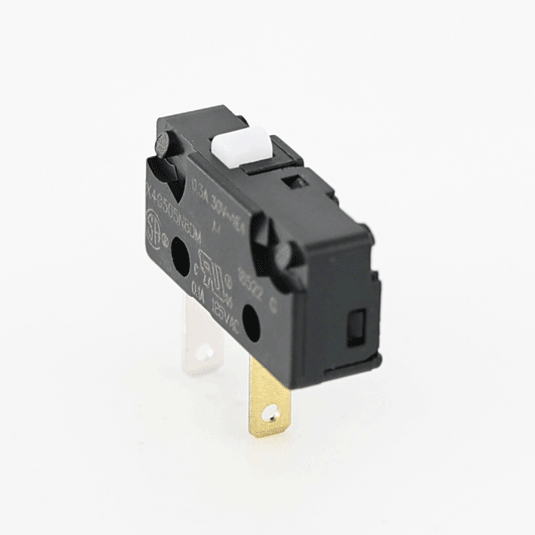

This package contains 5 pieces of X4G505N8DM unsealed snap-action microswitches, designed for superior quality and performance. Circuit type Normally Open. Equipped with Gold Plated contact material, for 30VAC, 300mA 1E4 / 12VDC 100mA ratings. Actuation is on Plunger and terminal type is Faston 2.8. Rated IP40 for basic protection. The switches have UL approvals.
Specifications
| Dimensions | 19.9mm x 9.7mm x 6.4mm |
|---|---|
| Switch type | Snap-Action |
| Circuit type | Normally Open |
| Operating Force N max. | 2 |
| AC Rating max. | 30V, 300mA 1E4 |
| DC Rating max. | 12VDC, 100mA |
| Contact material | Gold microprofile (Crosspoint) contacts |
| Mechanical cycles up to | 1,000,000 |
| Electrical cycles up to | 100,000 |
| Terminal type | Faston 2.8 |
| Actuator type | Plunger |
| Approvals | UL |
| Mounting | Mounting holes |
| IP level | IP40 |
| Operating temperature.°C | T85 |
| Weight | 1.64 g |
| Datasheet Download | Please contact us for the product datasheet |
