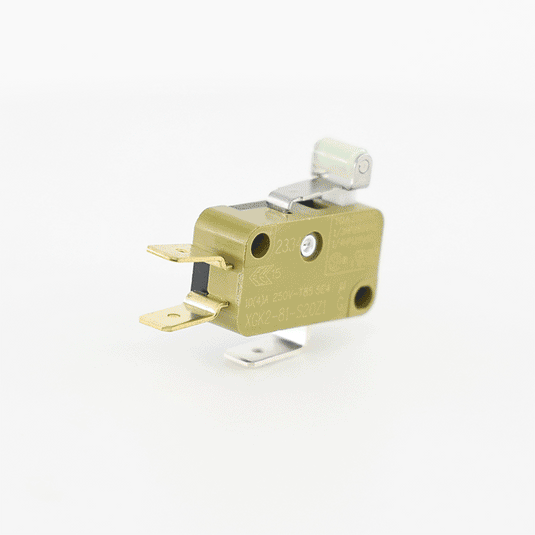

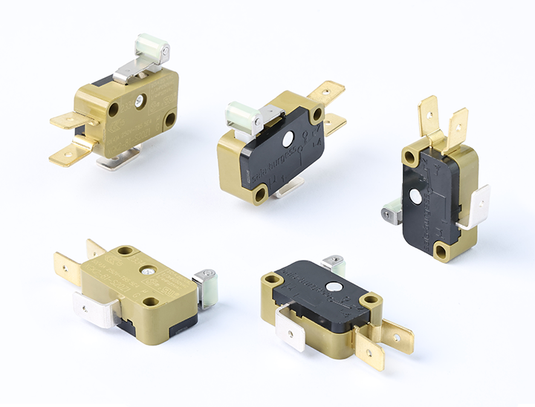

Package of 5 pcs. SAIA Microswitches XGK2-81-S20Z1

Regular price $75.00 USD
Sale price $75.00 USD Regular price
Sale Sold out
Unit price
/per
This is a pre order item. We will ship it when it comes in stock.
This package contains 5 pieces of XGK2-81-S20Z1 unsealed snap-action microswitches, designed for superior quality and performance. Circuit type Change-Over. Equipped with Gold Plated contact material, for 250VAC, 10A 5E4 ratings. Actuation is on Lever, roller 12.8mm and terminal type is Faston 6.3. Rated IP40 for basic protection. The switches have UL, ENEC approvals.
Product

Specifications

Dimensions 27.8mm x 15.9mm x 10.3mm
Switch type Snap-Action
Circuit type Change-Over
Operating Force N max. 1.5
AC Rating max. 250V, 10A 5E4
DC Rating max. -
Contact material Gold Plated
Mechanical cycles up to 3,000,000
Electrical cycles up to 100,000
Terminal type Faston 6.3
Actuator type Lever, roller 12.8mm
Approvals UL, ENEC
Mounting Mounting holes
IP level IP40
Operating temperature.°C T85
Weight 8.13 g
Datasheet Download Please contact us for the product datasheet
